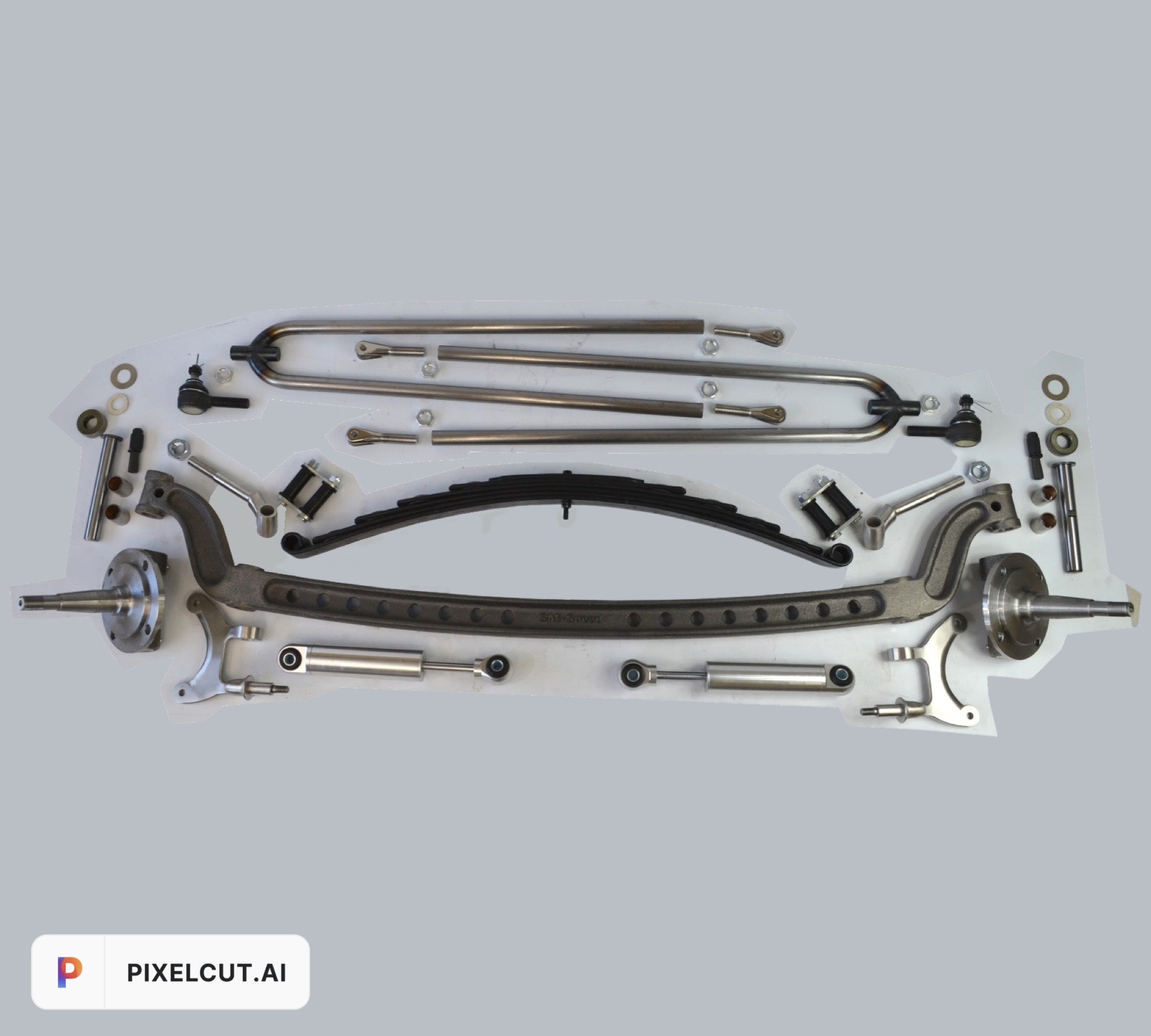

1928-48 FORD MODEL A 4" DROPPED BEAM KIT W/O BRAKES

  • $809.99


  • FRONT LEAF SPRING WITH SHACKLES
  • BRUSHED STAINLESS STEEL SPRING PERCH KIT

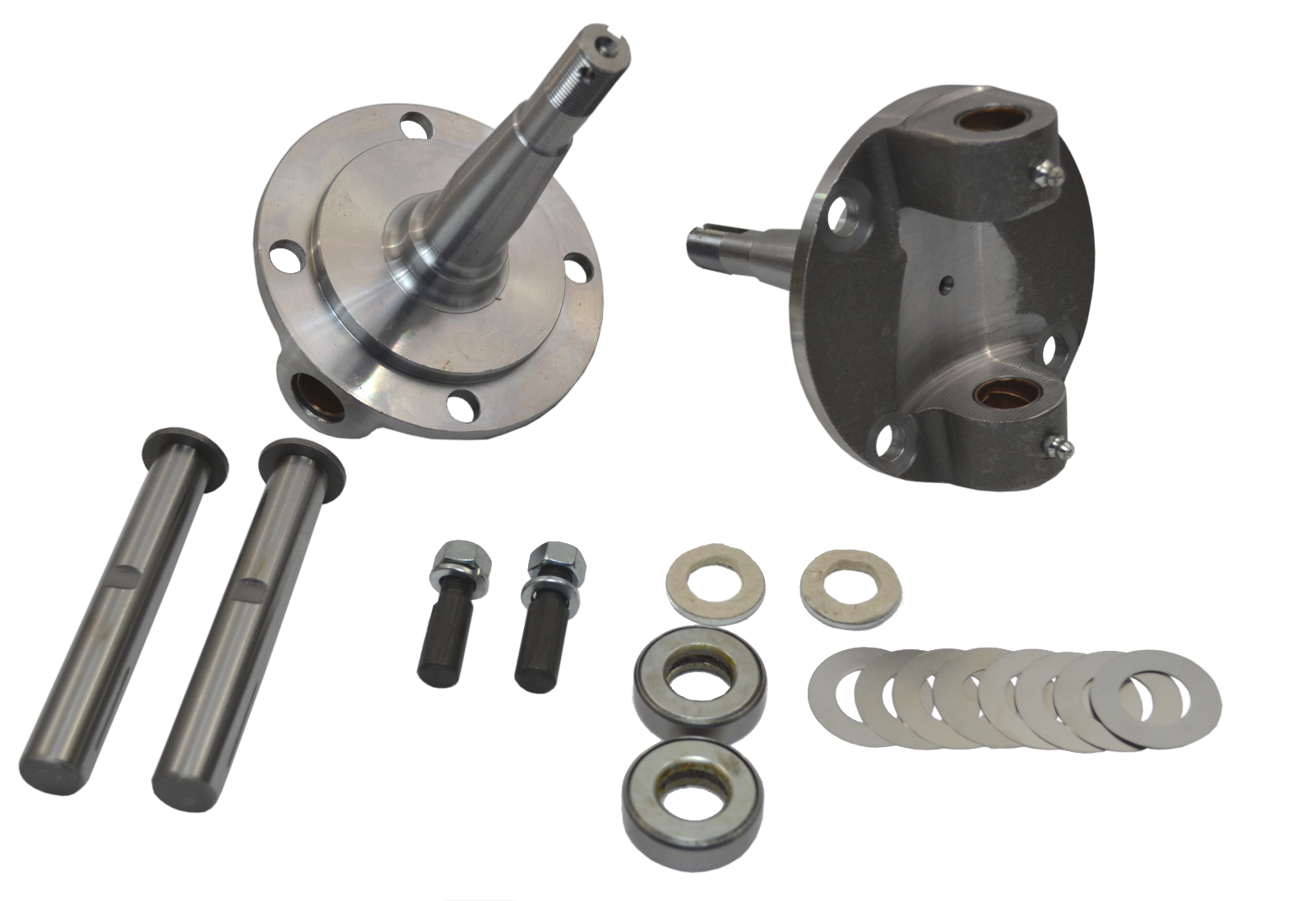

  • FORGED FORD ROUND SPINDLES BUSHINGS INSTALLED WITH KING PIN KIT

ALSO INCLUDES:

I-BEAM
46" WIDE
34 1/2" SPRING PERCH EYE TO EYE

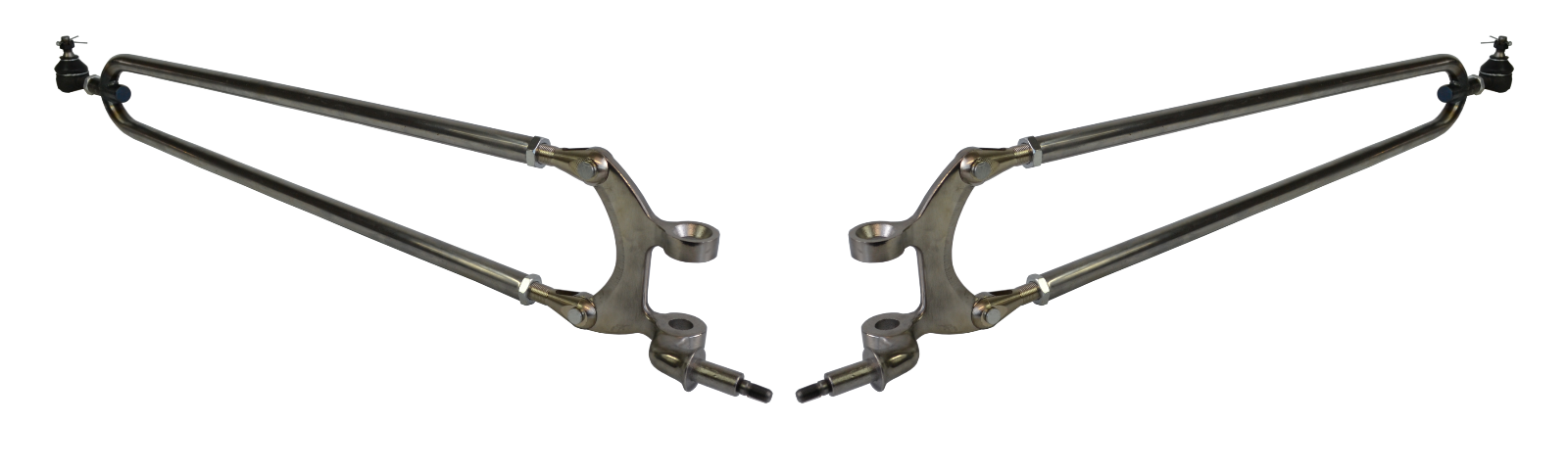

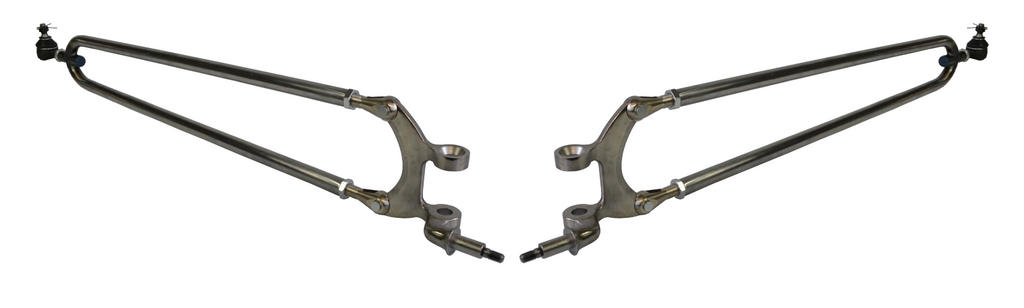

HAIR PIN RADIUS ROD KIT

These front radius rods are ideal for smaller or full-fendered cars. Rugged, 7/8" O.D. Raw steel tubing is threaded 5/8"-18 NF right hand at each end.

Designed to be used the included batwings which have a 5" center to center bolt hole spacing on front tube or I-beam axles only. Not to be used for rear suspensions. Before installing the heim joints or clevis ends, the actual measurement will be center to center 4-1/2". The angle of the tube will increase the measurement to 5" after installing the end hardware.

INCLUDED IN KIT:

QTY. 2 RAW STEEL HAIR PIN RADIUS RODS FOR LEFT AND RIGHT SIDE

QTY. 2 MALE TIE ROD ENDS 5/8-18 RH WITH JAM NUT

QTY. 4 STAINLESS STEEL CLEVIS 5/8-18 WITH 3/8 OPENING AND JAM NUT

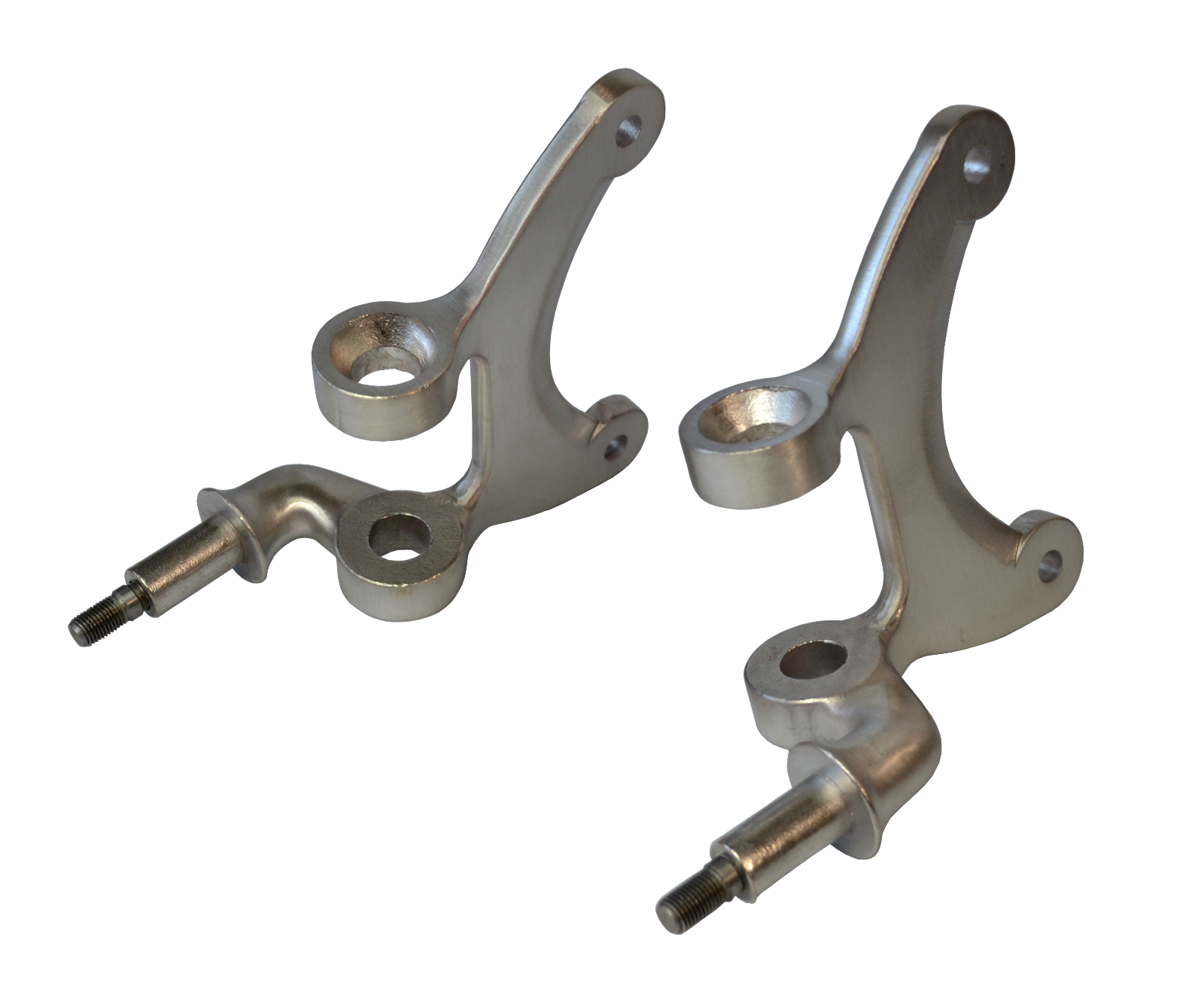

QTY. 2 BRUSHED STAINLESS STEEL BAT WINGS WITH SHOCK MOUNTS

QTY. 2 STREET ROD SHOCKS
